Below you can find the lock orientation for the Production Installation of our Aircraft Security ASCL605M-14 (604-33530-1-01) Medeco Lockset.

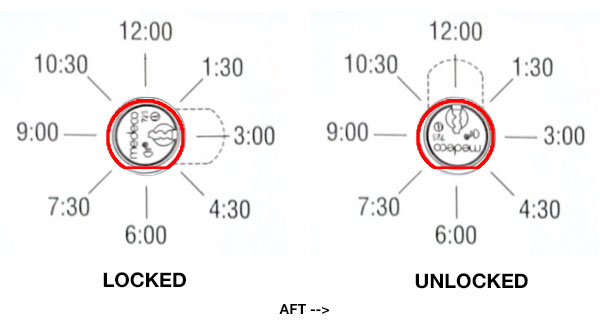

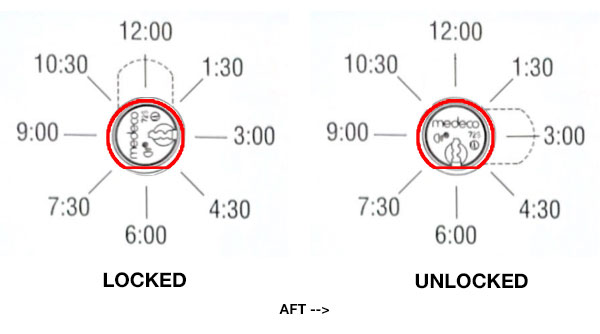

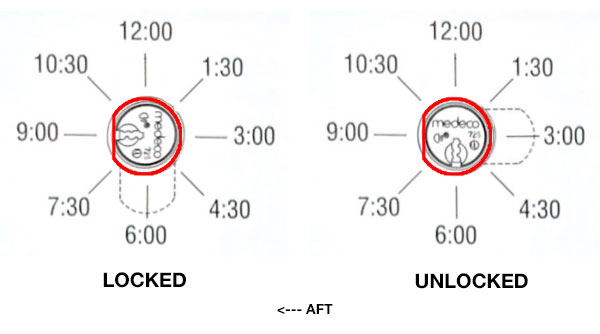

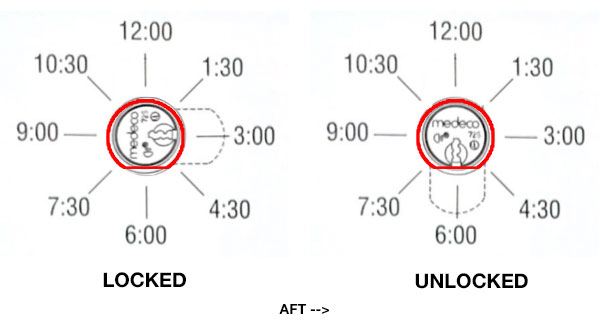

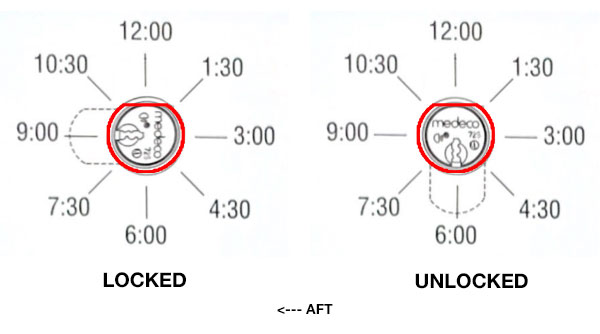

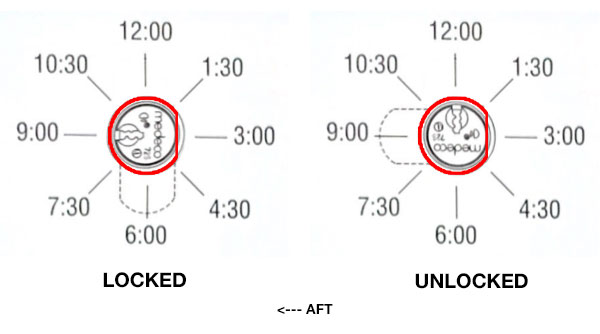

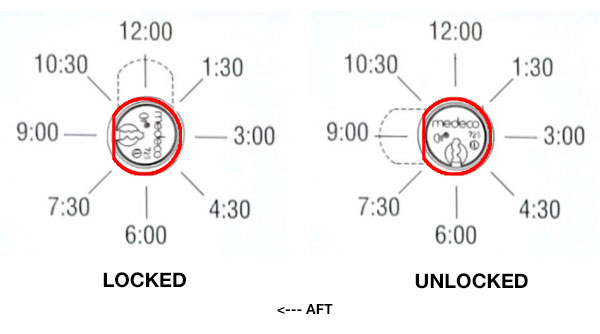

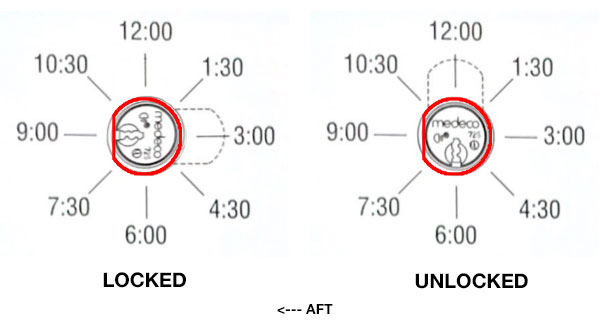

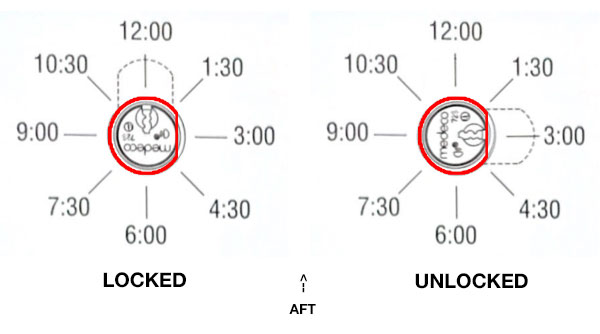

The red border shows the shell and the "flat" side's position. Follow the Keyway and the Cam for guidance.
| AS55TV4SR (604-33516-1) Passenger Door Lock |
AS55TV4SBR (604-33517-1) Baggage Bay Door Lock |
| PENDING | |
| AS55TCV5S (604-33518-1) Aft Equip. Bay Door Lock |
AS65129H01C (604-33525-1) Radome lock |
| AS51129SJ7 (604-33527-1) Refuel panel lock |
AS51129SJ13 (604-33526-1) Fuel Control panel lock |
| AS65129SV9 (604-33519-1) Left Avionics Panel Lock |
AS65129SV9 (604-33519-2) Right Avionics Panel Lock |
| AS51129SH26 (604-33521-1) Oxygen Panel |
AS51129SH26 (604-33523-1) Water Panel Lock |
| PENDING | |
| AS51129SH14 (604-33524-1) APU panel locks |
AS51129SH26S (604-33522-1) Lav. Panel Lock |
| AS51129SJ22 (604-33528-1) L HYD PANEL LOCKS |
AS51129SJ22 (604-33528-2) R HYD PANEL LOCKS |
